Circular Waterproof Connectors
Explore E-Weichat's circular waterproof connectors. From standard product selection to application-specific customization, we support your project with product engineering and in-house manufacturing capabilities.
Self-Locking

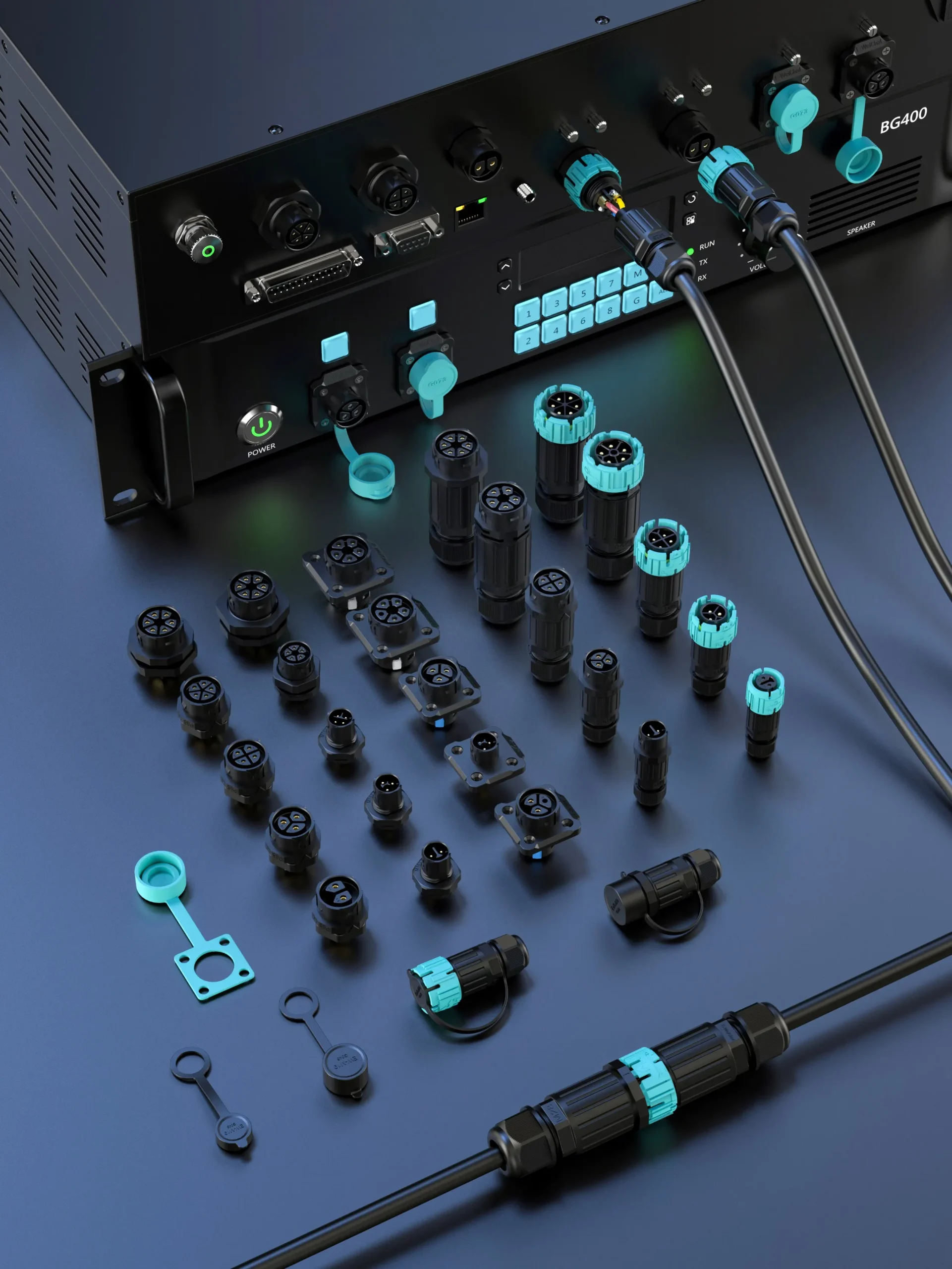

E-Weichat Self-Locking Series
Wherever there are high requirements for electrical connections, our male and female mating waterproof connector series are capable. No matter how challenging your on-site environment is, the tight sealing and high mechanical strength of the connectors ensure that your application scenarios can be powered on, installed at an astonishing speed, and most importantly, safely.
With its compact design, this series of connectors can not only be used in the smallest spaces and environments, but also offers different sizes and wiring methods according to your requirements, such as screw lock wire type, soldering type, quick wiring type, etc. It is a plug-and-play self-locking connector that can be opened by twisting to the left or right, so it can be connected immediately according to the plug-and-play principle.
Key Features of Self-Locking Series

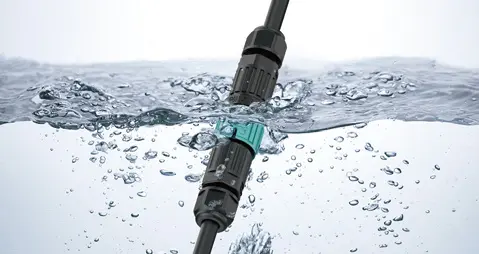

IP68 rating, multiple protections
With a multi-layer waterproof structure design, the connection statuscan reach IP68 level, allowing it to be used underwater (Test stan-dard: 2m/12H).

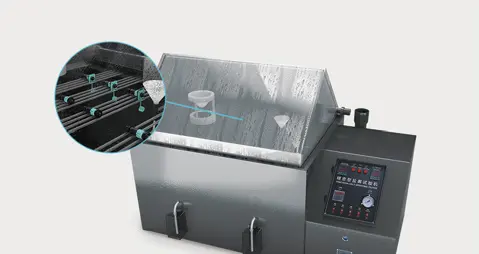

Non-magnetic, corrosion-resistant
The shell is made of PA66 material, with an overall non-magneticstructure, suitable for various environments with high corrosivity andmagnetic requirements.

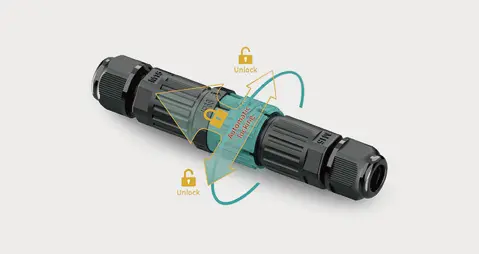

Three-point push-pull, quick connection
Adopting the self-developed three-point push-pull connectiondesign, it locks tightly upon insertion, ensuring convenient andstable connection.
Resistant to severe cold and enduringintense heat

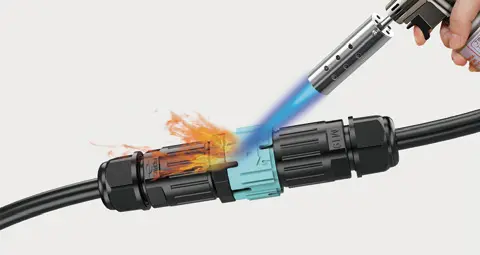

The self-locking series is suitable for high and low temperature envi-ronments ranging from -40 to 105℃, easily withstanding the chal-lenges of various harsh environments.

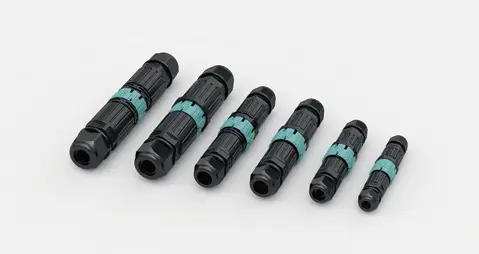

Multiple sizes available to accommodate different devices
Covering products ranging from small to large sizes, from M15 toM28, with larger sizes corresponding to higher currents, meeting the needs of devices with different current requirement.

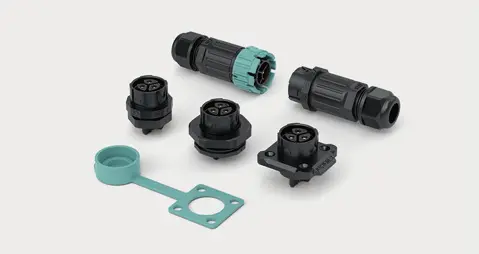

Multiple installation categories, applicableto different environments
The self-locking series offers four different installation options: front nut type, rear nut type, flange type, and mobile docking type. You can choose according to your actual usage environment.

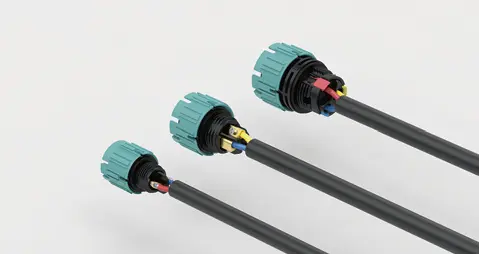

Multiple wiring methods, suitable for differ-ent operations
E-Weichat waterproof box series not only allows for customization of color, PG head size and quantity, and the addition of power plugs, but also supports ODM and OEM with different logos.
Multiple types are customizable to meet special needs

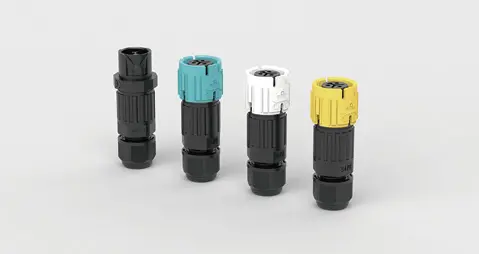

Currently, the self-locking series not only supports customization of various colored shells, such as blue, yellow, and white, but also allow the customization of logos and other elements.
Self Locking Series Key Specs
| Connection type | Self locking |
| Texture | Plastic type |
| Level of protection | IP68 |
| Characteristic | Plug-and-play, allowing for use in the smallest space and environment. |
| Application type | More PIN (2,3,4,5,6) |
| Model | EW-M15MP, EW-M15MF, EW-M19MP, EW-M19MF, EW-M23MP, EW-M23MF, EW-P23MP, EW-P23MF, EW-P25MP, EW-P25MF, EW-M28MP, EW-M28MF |
Quick Connect
E-Weichat Quick Connect Series
Pull the button up, insert the conductor, and push the button down to complete!
This is the E-Weichat quick-connect series connector. As a tool-free quick-connect connector, the connector can easily, quickly, and safely connect solid, stranded, and thin conductors ranging from 0.5-2.5mm² and up to 16A.
They are available in various designs and variants. This enables the Weichat P series quick-connect connectors to be widely used for power supply in various applications.
Key Features of Quick Connect Series
Reliable waterproof performance

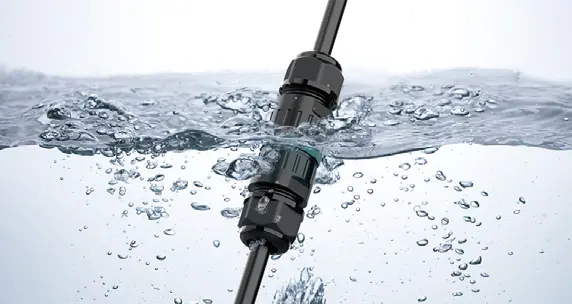

With a multi-layer waterproof structure design, the connection statuscan reach IP68 level, allowing it to be used underwater(Test stan-dard: 2M/120H).
Diverse choices

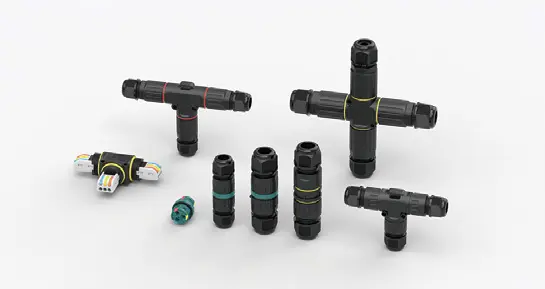

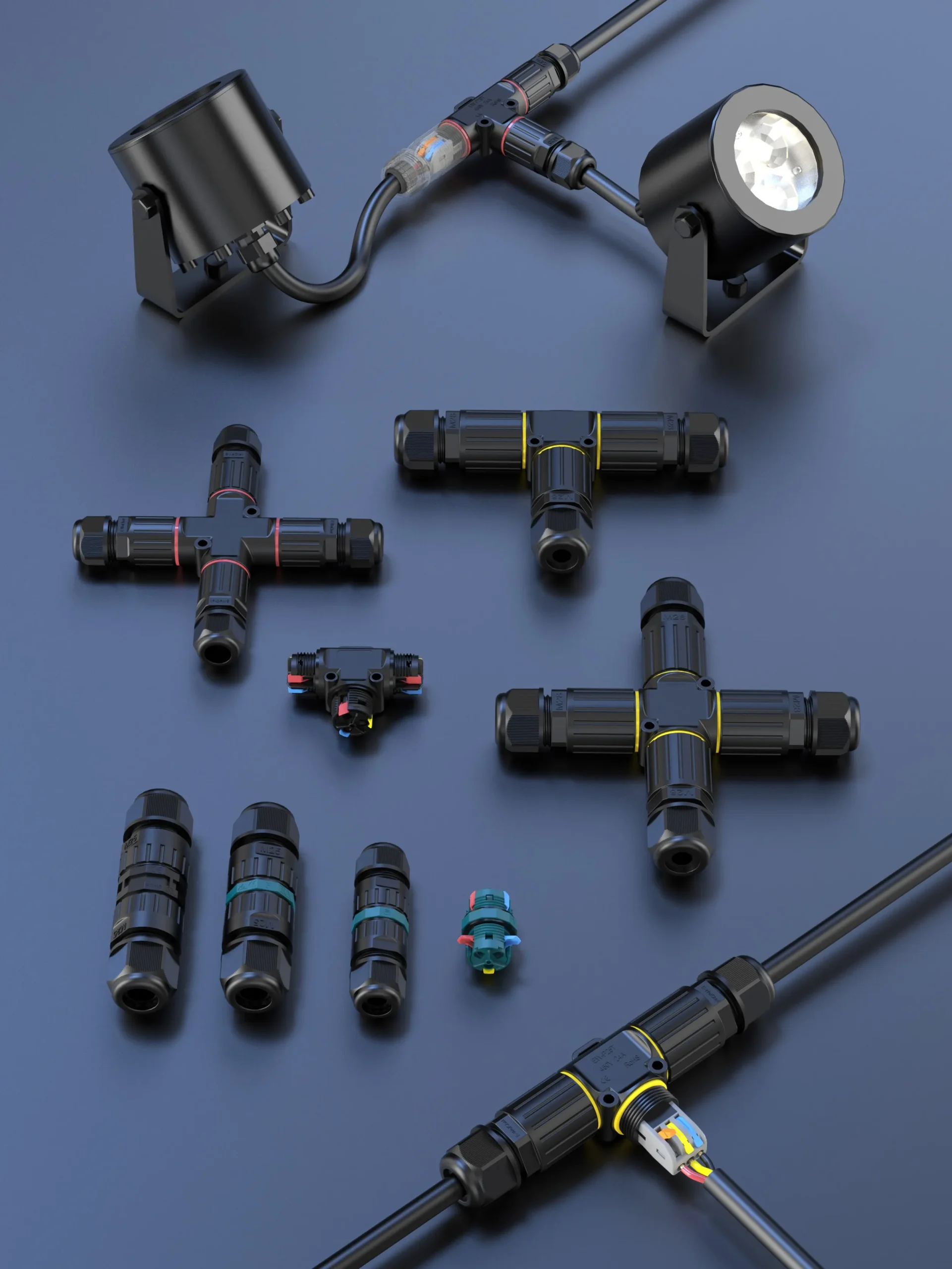

There are various styles to choose from, including straight-through,T-shaped, Y-shaped, and cross-shaped, as well as different water-proof rings that can be selected according to wires of different sizes.

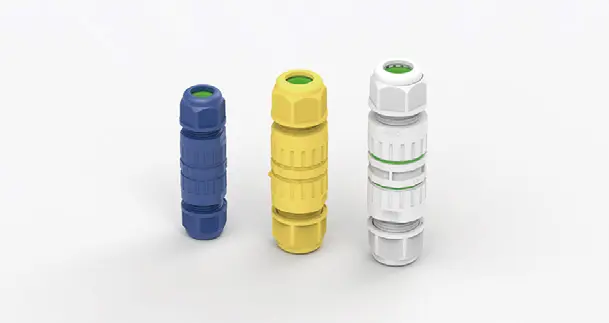

Customizable
In addition to customizable shells in various colors such as blue,yellow, and white, it also supports customization of coil color andtype, LOGO, wire, and more.
Quick wiring method

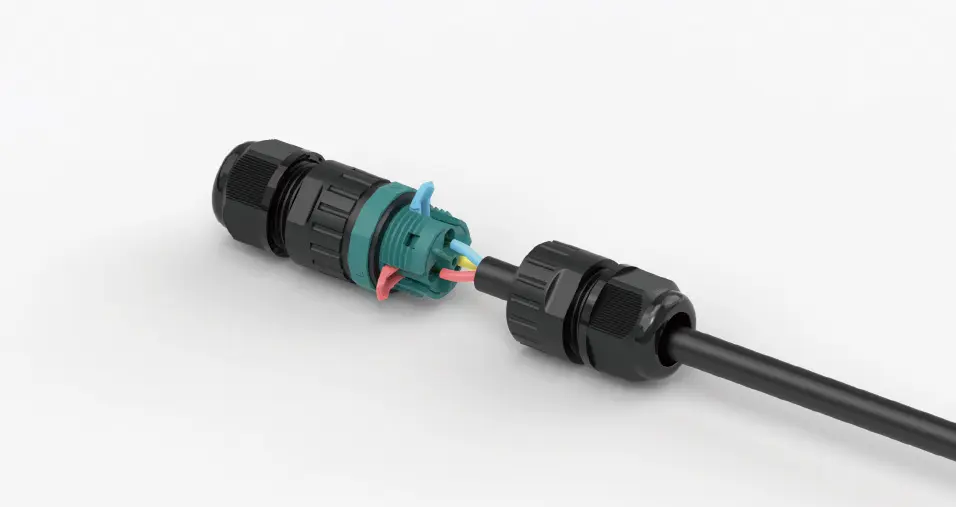

This series adopts a quick-connect snap-on wiring method, eliminat-ing the need for any wiring tools. With just a gentle press, wiring canbe easily completed.
Quick Connect Series Key Specs
| Connection type | Threaded type |
| Texture | Plastic type |
| Level of protection | IP68 |
| Characteristic | No tools required. Quick wiring and installation possible. |
| Application type | More PIN (2, 3, 4, 5) |
| Model | EW-P20, EW-P25, EW-M25B, EW-P20T, EW-P20T-B02, EW-P25T, EW-P20X, EW-P25X |
Screw Wiring
E-Weichat Screw wiring series
The conventional round lockwire series can protect installed equipment even when used in a water-containing environment. The Weichat connector boasts IP68 waterproofing, effectively preventing moisture from infiltrating through cables, water vapor, surface drips, and water impacts. It can be used to install equipment and power it in areas with a water depth of up to 4 meters, ensuring the safety of electrical and electronic components.
The product design enhances the overall quality of the cable connector, ensuring long-term stability of the electrical connection. The sealing ring won’t be lost or forgotten by the installer, as it fits perfectly onto the product, thus preventing incorrect installation of the connector. This facilitates quick and easy wiring for operators, and allows for re-inspection of the connection at any time.
Products have passed authoritative TUV/CE/cUL/SAA/CQC certifications and comply with REACH and RoHS standards.
Key Features of Screw Wiring Series

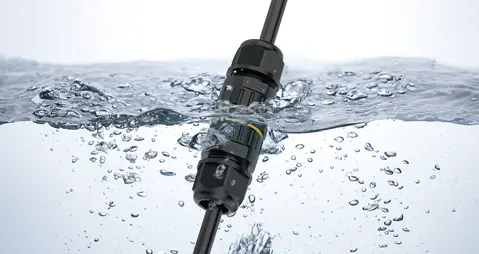

Reliable waterproof performance
With a multi-layer waterproof structure design, the connection statuscan reach IP68 level, allowing it to be used underwater (test stan-dard 2M/120H).
Diverse choices

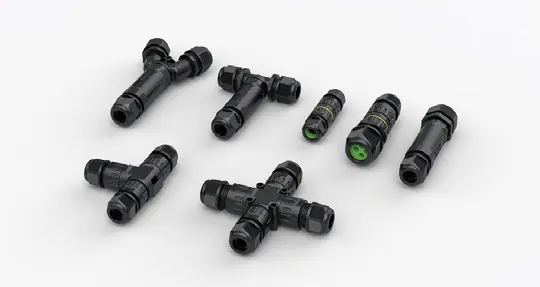

There are various types to choose from, including straight-through,T-shaped, Y-shaped, and cross-shaped, as well as different water-proof rings, allowing for selection based on wires of different sizes.

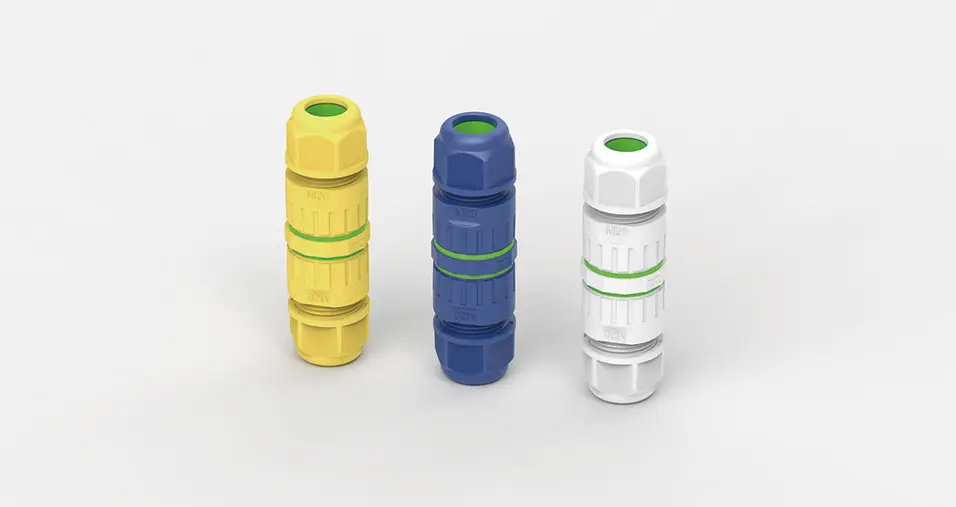

Customizable
In addition to customizable shells in various colors such as blue,yellow, and white, it also supports customization of coil color andtype, LOGO, wire, and more.

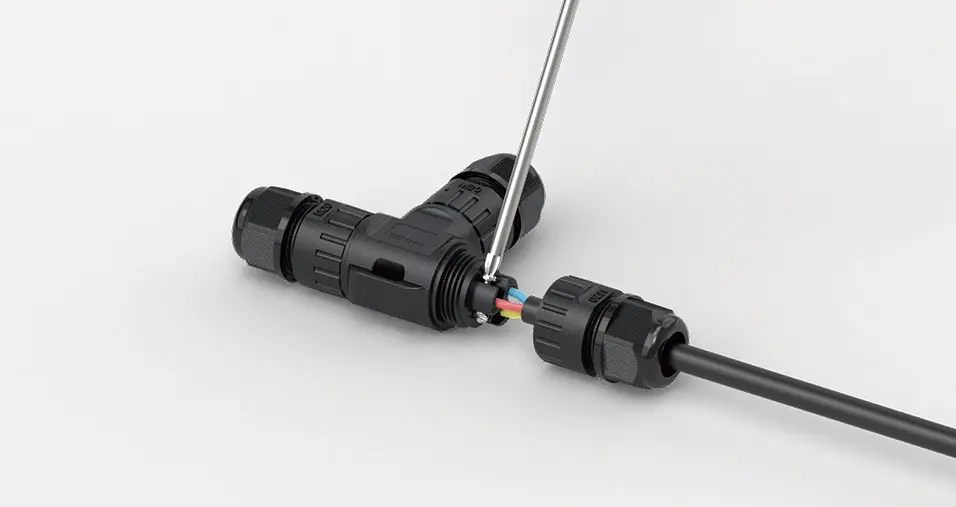

Screw locking wiring method
Utilizing a locking screw wiring method, only a screwdriver is neededfor easy wiring, ensuring stability and reliability.
Screw Wiring Series Key Specs
| Connection type | Threaded type |
| Texture | Plastic type |
| Level of protection | IP68 |
| Characteristic | Multiple waterproof structures, suitable for vari-ous lighting scenarios |
| Application type | More PIN (2, 3, 4, 5, 6) |
| Model | EW-M16, EW-M20, EW-M25, EW-M25I, EW-M25-3T/4T/5T, EW-M20T, EW-M25T, P25T, EW-M25TC, EW-M25Y, EW-M20X, EW-M25X, EW-L02/L03, EW-B02 |
Why E-Weichat
Manufacturing & Quality Highlights
Precision engineering and rigorous quality control ensure reliable performance in every connector we produce.
Advanced Equipment
Operate 100+ production machines for tooling, stamping, injection molding, automated assembly, and other production processes to support consistent manufacturing and volume production.
Strict Quality Control
Multi-stage inspections cover incoming materials, production, inventory, and outgoing products. 20+ testing devices support testing and validation in our UL/TÜV-based in-house laboratory.
Experienced R&D Team
A 30+ member in-house R&D team supports connector design, customization, product development, and project engineering, helping improve product performance and reliability.
Efficient Production
With an annual production capacity of 10 million+ sets and a production facility of approximately 7,000 m², our manufacturing system supports both standard products and volume production requirements.
Certification & Innovation
IATF 16949, ISO 9001, ISO 13485, ISO 14001, UL, cUL, TÜV, CE, SAA, CQC, and RoHS. We also hold multiple invention patents and dozens of utility model and design patents
