E-Weichat EU USB Series
The technical performance of this product conforms to the specifications of the USB Association and the IEC standards. It adopts a design featuring a locking buckle that tightens after insertion, offering advantages such as secure locking, robustness, and smooth insertion and extraction.
The product can withstand more than 1000 cycles of insertion and extraction. The shell is made of PA material, ensuring stable electrical performance and excellent physical and chemical properties such as high temperature resistance and corrosion resistance. Additionally, the contact elements are plated with gold, providing superior conductivity and meeting the temperature rise requirements of the product even in high-temperature environments.
Applicable standards: Conforms to the specifications of the USB Association and the IEC standards.
Key Features of E-Weichat USB Connectors

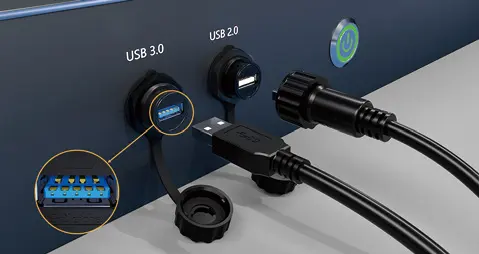

True gold plating on contact elements
The contact pieces are plated with genuine gold, ensuring stabletransmission rates and electrical performance while also extendingtheir service life.

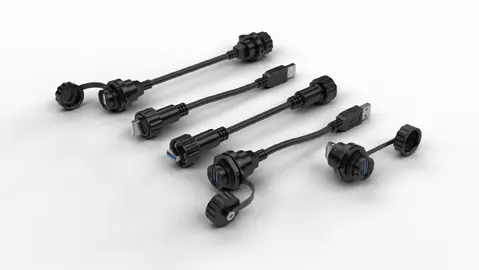

Diverse options
There are various types to choose from, including male-to-female,male-to-male, and female-to-female, supporting panel installationand wire-to-wire extension connections to meet different applicationenvironments.

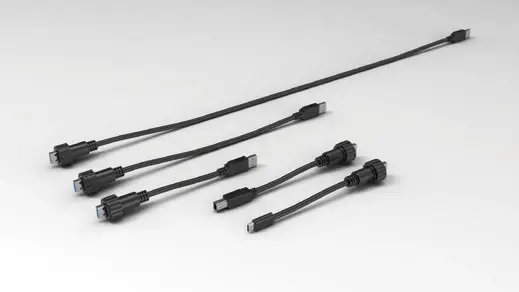

Customizable
This series offers regular products with cable lengths of 0.5M, 1M,and 1.5M for selection. Additionally, different lengths of cables, USBto terminal adapters, and USB-A to B/C adapters can be customized.

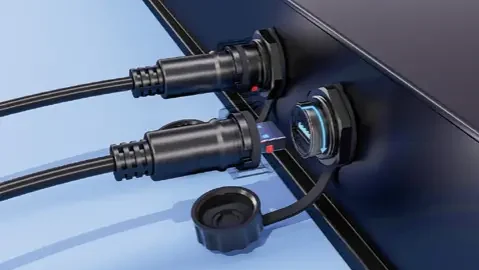

Snap-lock design
This series adopts a snap-lock connection method. During connec-tion, simply rotate the plug locking device to secure it, ensuringsafety and reliability.
USB Connectors Key Specs
| Model | Board-side female socket | USB single interlock male connector | USB dual interlock male connector | USB cable male and female connectors | USB cable with dual female connectors | ||||
| USB specification | USB3.0 | USB2.0 | USB3.0 | USB2.0 | USB3.0 | USB2.0 | USB3.0 | USB2.0 | USB3.0 |
| Rated current | 2.0A | 1.5A | 2.0A | 1.5A | 2.0A | 1.5A | 2.0A | 1.5A | 2.0A |
| Working Voltage | 30V AC | 5V AC | 30V AC | 5V AC | 30V AC | 5V AC | 30V AC | 5V AC | 30V AC |
| Withstand Voltage | 100V / AC | ||||||||
| Insulation resistance | 500MΩ / 100V DC | ||||||||
| Waterproof rating | IP67 | ||||||||
